Foilboard Ultra Steel Screws

Foilboard® Ultra Tek Screws for 20mm and 25mm Sheets

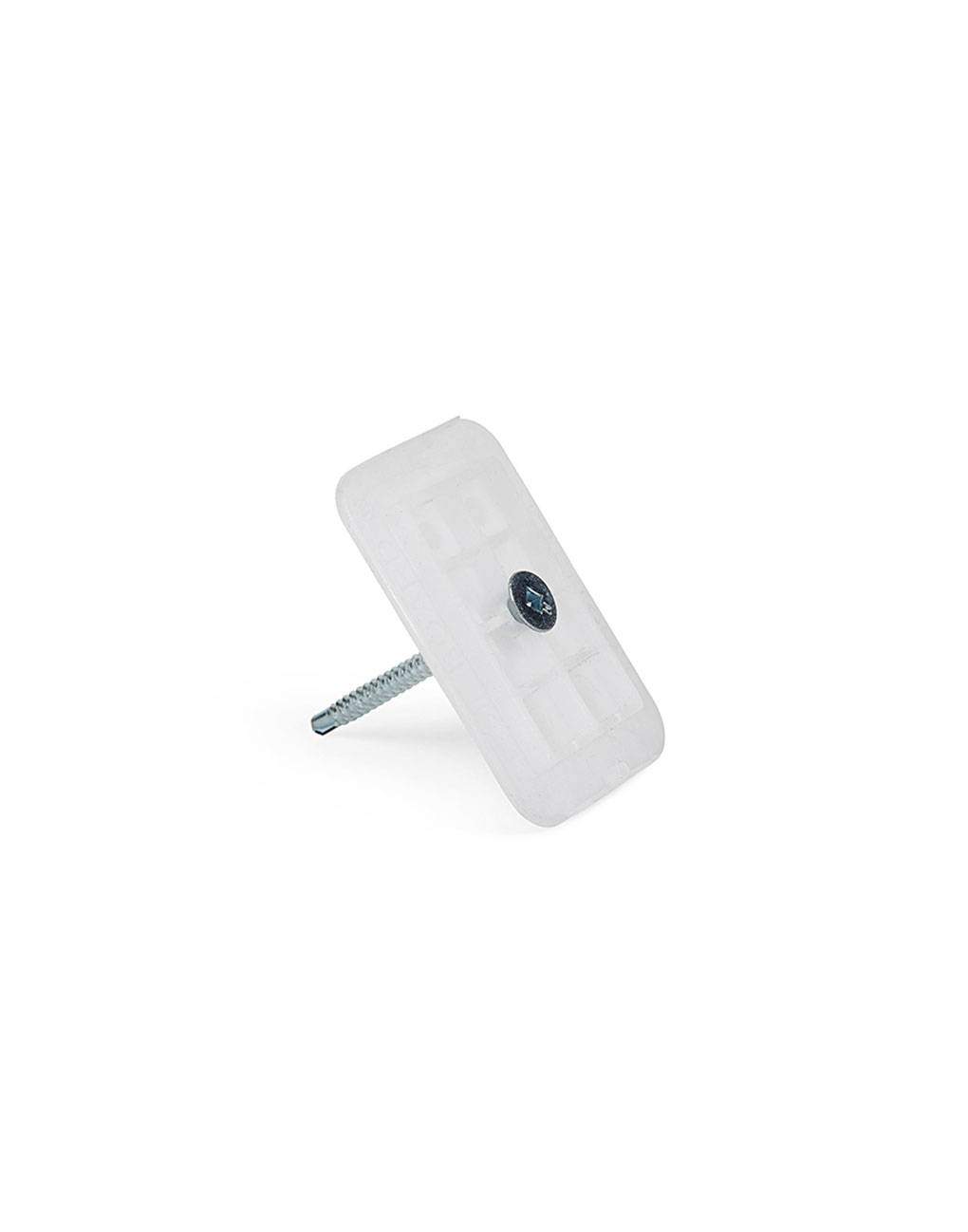

Foilboard® Ultra Tek Screws are a 50mm x 35mm plastic washer with a screw pre-punched used to fasten Foilboard® to steel frames. Foilboard steel screws are a fastener which come with a 40mm screw suitable for Standard 20 and Super 25 Foilboard® Sheets. Foilboard recommends a fastener every 600mm.

Foilboard Fasteners for Steel Frames

Foilboard Australia Pty Ltd manufactures a range of fixing accessories tailored to suit many construction applications. These Foilboard steel screws ensure that the material will be installed correctly and maintain its thermal performance for the life of the application. Whether it is for timber or steel frame construction, underfloor applications and even commercial systems, Foilboard® has the right fixings to suit all applications.

Method of Calculating Quantities of Foilboard

• Measure Floor or Wall area.
• Add 5% to area to allow for cutting and waste, deduct window and door openings.
• If using 2.44m sheets divide the area by 2.93 to give the number of sheets required.
• If using 2.70m sheets divide the area by 3.24 to give the number of sheets required.
• Round up to the next full sheet.
• Floor saddles should be on joists at approx 600mm centres and spaced at 200mm from sheet ends.
• For retro-fits Foilboard should span across the underside of joists and between bearers using three Foilboard fasteners per joist. Joins do not need to be made on a joist and you should tape all joins.
• Generally 1 bag of saddles is required for every 45-50m2 and 1 Role of Green Tape will be required for every 100m2. For retro-fits you will generally require 1 bag of Foilboard Fasteners and 1 roll of Green Tape for every 15-20 sheets, for Aluminium tape you will require one roll for every 10-12  sheets approx. Flexifastners should be used for all sheets 25mm or thicker and you will require 1 bag of 200 fastners for every 15-20 sheets. Or for sheets over 25mm in thickness you can order the plastic plates and supply your own fixing nails or screws. Spacers for brick work you will require 8-10 spacers per m2

Residential Wall

For example, an area of 130m2 (residential wall – timber/steel frame excluding windows) will require;

• 45 sheets of Foilboard® Insulation Panel (2440mm x 1200mm, 2.93m2 per sheet)
• 3 bags of fasteners (Standard or Ultra)
• 3 Rolls of Green UV PVC Tape

Underfloor Area

For traditional underfloor applications using timber joists at 450mm centres (130m2);

• 45 sheets of Foilboard® Insulation Panel (2440mm x 1200mm, 2.93m2 per sheet)
• 3 bags of Foilboard® Floor Saddles
• 3 Rolls of Green UV PVC Tape
