What are SIPs panels made of?

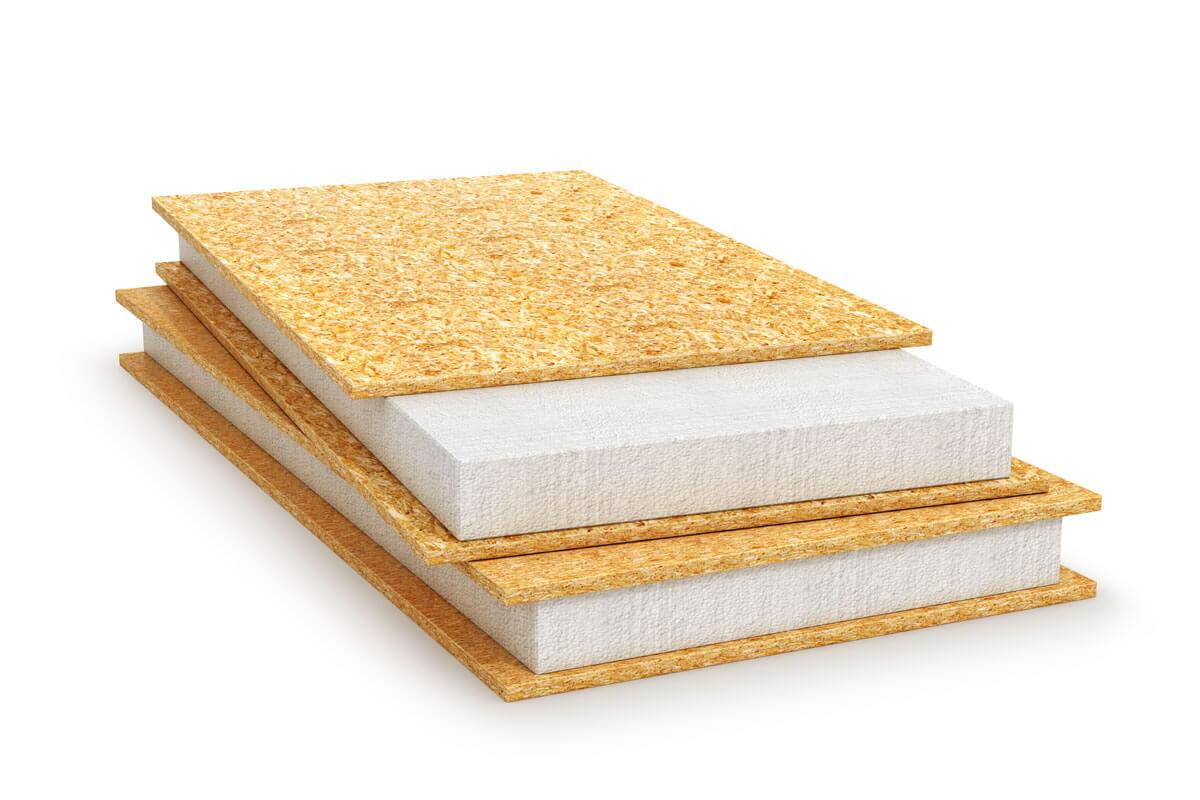

Structural insulation panels SIPs are designed for light commercial buildings and residential homes. These panels have an insulating foam core, usually expanded polystyrene EPS or polyisocyanurate PIR, which is sandwiched between two structural facings such as oriented strand board OSB. SIPs can be constructed to fit most building designs, and building with SIPs can save you time, reduce your overall project cost and reduce the labour work involved. Additionally, as there are very few gaps, once SIPs are installed, there is very little thermal bridging and the building can be very airtight.

Are SIPs expensive?
The cost of building with structural insulation panels SIPs is generally about the same as construction with a wooden frame. Lower costs are also due to reduced construction time (the structure of a single-storey home can be built in 5 days) and less material wastage from the job. Other long-term advantages include reduced energy usage, indoor air quality more easily controlled and moisture control.
Are Pirmax and SIPs the same thing?
Pirmax insulation (PIR) is a closed-cell polyisocyanurate foam core panel which is light weight, making it easy to handle and can be fixed to practically any substrate and application. It is available in varying thicknesses and R-values.

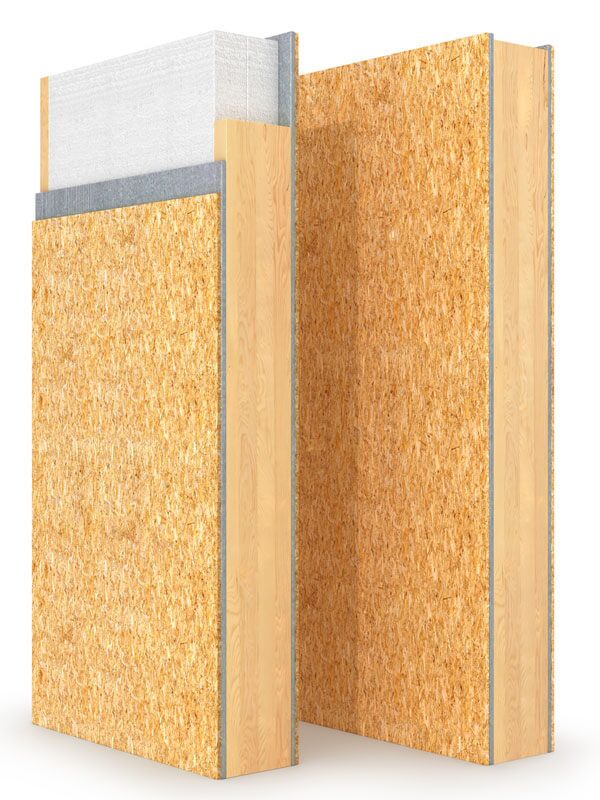

Structural insulation panels SIPs consist of two exterior layers of oriented strand board (OSB) and have an internal insulation core, which is usually a polyisocyanurate PIR or expanded polystyrene EPS insulation core. So, Pirmax insulation is an insulation panel on its own, while SIPs are insulation panels with two exterior boards making up the structure.
Applications of Pirmax and SIPs

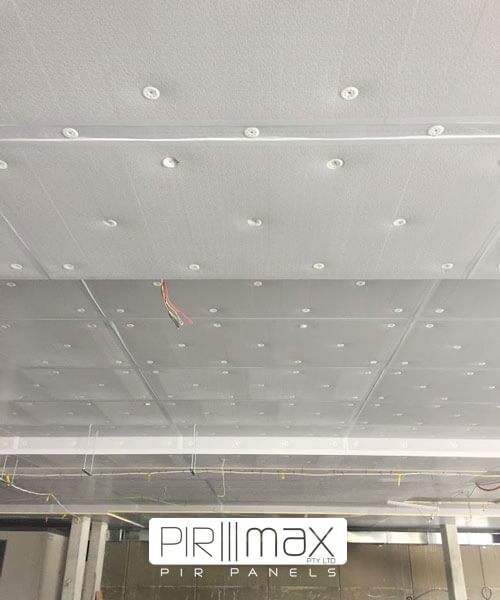

Pirmax insulation has a wide range of applications and can be used in both residential and commercial settings. Specifically, Pirmax insulation can be used for insulating roofs, internal and external wall cavities, ceilings, underfloor areas, and air-conditioning ducts in commercial and residential settings.
Structural insulation panels (SIPs) can form floors, walls and roofs, as they are available in varying thicknesses of insulation. This means the R-value varies between the thicknesses and is suitable for a variety of applications to meet your thermal needs. SIPs are most suited to residential homes; however, they can also be used in apartment buildings and some commercial settings. These panels can be used on all areas of a home including external walls, load-bearing walls and roofs. These structural insulation panels SIPs are a strong, energy-efficient and cost-effective product.
Foilboard GREEN Rigid Insulation Panels
- Panel R-values from R0.30 to R1.2 across 10mm to 50mm
- Combined thermal break, vapour barrier and reflective insulation in one
Knauf Earthwool SoundShield Insulation Batts
- Available from R2.0 to R4.0 to suit different climates
- Softer to handle than standard glasswool, thanks to the ECOSE bio-based binder
Bradford Gold Batts Hi-Performance Wall Insulation
- Wall options from R2.0 to R2.7 to match your comfort target
- Australian made, to Australian standards
